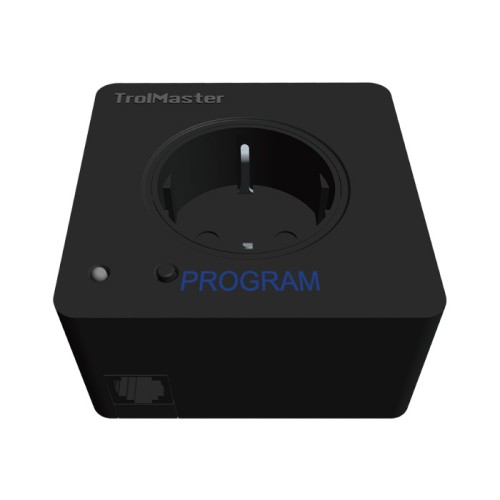

Trolmaster Program Device Station DSP-1

The TrolMaster DSP-1 program device module (timer module) works like a multi-function timer. The DSP-1 allows the user to easily connect any device that needs to be controlled by TIME to the Hydro-x.  The DSP-1 allows control of any device under the world voltage standard (100-240 VAC, 50/60 Hz), up to 10-amps.

LED status:

* Blinking green FAST: If the LED is blinking quickly, that means the module has not been addressed to the controller OR that module does not have a good connection to the controller. *Pressing the small button on the module will address/link the module when first installed.

* Blinking green SLOW: If you see a slowly blinking green LED, that means the module is addressed and connected to the controller, and the module is currently turned OFF.

* SOLID green: If you see the LED is on solid (no blinking) that means the modules are addressed, connected and currently turned ON.

* Blinking red: If you see the LED change to blinking red, that means the module has been overloaded. To reset the overload unplug the module from the power.

* By pressing and holding the button on the DSP-1, users can manually override the module and turn it ON / OFF.

Features:

• LED Power Indicator
• 3-Prong Attaching Plug
• RJ12 Cable Socket
• Addressing
• Plug & Play

Package Content:

1 x Device Station

1 x 16ft RJ12 Cable

1 x 4ft RJ12 Cable

1 x RJ12 T-Splitter
